Item Details

HVAC Heater Hose Assembly

Engine Heater Core Bypass Kit | 626-001 | 3/4 Top

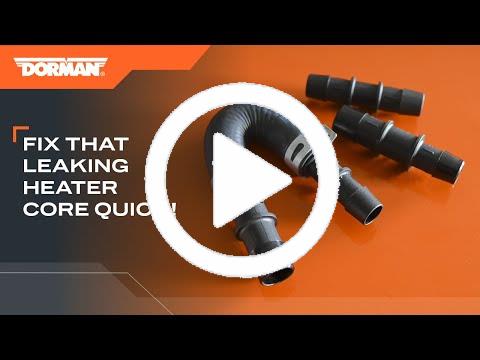

Engine Heater Core Bypass Kit | 626-001 | Additional ImagesEngine Heater Core Bypass Kit | 626-001 | Additional ImagesEngine Heater Core Bypass Kit | 626-001 | Front ViewEngine Heater Core Bypass Kit | 626-001 | Back ViewEngine Heater Core Bypass Kit | 626-001 | Top ViewEngine Heater Core Bypass Kit | 626-001 | 3/4 TopCar leaking coolant from engine or HVAC? Check out Dorman’s replacements and OE FIX solutions | 626-001Leaking heater core? Fix it quickly with this bypass kit | 626-001360 View | 626-001

626-001

Engine Heater Core Bypass Kit

Product Description

Replacing a leaking heater core can be a labor-intensive and costly repair. This heater core bypass kit offers a money-saving alternative. It contains all the components and hardware required to bypass the failed heater core and stop coolant leaks, including interchangeable 5/8" and 3/4" hose fittings to adapt to most common heater hoses. Re-routing the engine coolant from the heater core by installing these components will disable the passenger compartment heat function, but this affordable repair can make an otherwise inoperable vehicle drivable again. The kit is engineered for durable service and designed for easy installation.

  • Cost-effective fix - this heater core bypass kit offers an affordable alternative to replacing an entire failed heater core
  • Complete solution - contains components and hardware required to bypass a leaking or failed heater core, including interchangeable 5/8" and 3/4" hose fittings to adapt to most common heater hoses
  • Durable materials - the components in this kit are manufactured from quality materials for reliable service
  • Trustworthy quality - vehicle try-on tested, and backed by a team of product experts in the United States and more than a century of automotive experience

Product Specifications

Axis 1 Length: 4.5 in
Axis 2 Length: 3.5 in
Branch Quantity: 1
Burst Pressure: 125 PSI
Centerline Length: 9.4 in
Clamps Included: Yes
Color: Black
Contains Spring: No
Coolant Hose Heat Shield Included: No
Coolant Hose Type: Branched
End 1 Attachment Type: Hose Barb
End 1 Inside Diameter: 0.52 in
End 1 Type: Flared Tube
End 2 Attachment Type: Hose Barb
End 2 Inside Diameter: 0.52 in
End 2 Type: Flared Tube
End 3 Inside Diameter: 0.52 in
End 4 Attachment Type: Hose Barb
End 4 Inside Diameter: 0.63 in
Grade Type: Standard Replacement
Heat Shield Included: No
Hose Attachment End 1: Flared Tube
Hose Attachment End 2: Flared Tube
Hose End (1) Outside Diameter (In): 0.64 in
Hose End (2) Outside Diameter (In): 0.53 in
Hose Material: EPDM
Hose Outside Diameter: 0.94 in
Hose Overall Length (In): 5.2 in
Hose Quantity: 1
Hose Shape: Molded Assembly
Inside Diameter: 0.62 in
Length: 5.2 in
Material: EPDM
Maximum Bend Angle: 26 Deg
Maximum Working Pressure: 50 PSI
Modular: No
Modular Components Included: Quick Disconnect; Clamp
Molded: Yes
Mounting Bracket Included: No
Outside Diameter: 0.94 in
Package Contents: 1 Heater Hose; 2 Hose Clamps; 2 Heater Hose Connectors 5/8 in x 3/4 in; 2 Heater Hose Connectors 5/8 in x 5/8 in
Protective Sleeve Attached: No
Protective Sleeve Included: No
Quick Connect Fitting Quantity: 0
Thermostatically Controlled: No
