Coolant Thermostat Housing

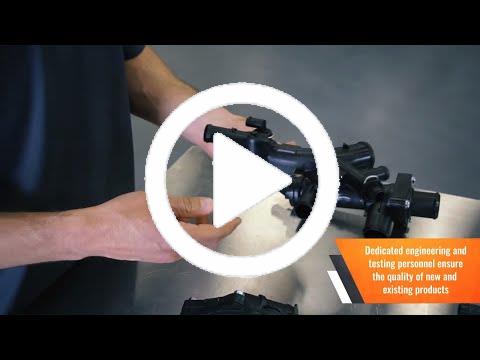

Engine Coolant Water Outlet | 902-313XD | Engine Coolant Water Outlet | 902-313XD | Front ViewEngine Coolant Water Outlet | 902-313XD | Back ViewEngine Coolant Water Outlet | 902-313XD | Top ViewEngine Coolant Water Outlet | 902-313XD | 3/4 TopQuality of Dorman Product's Water Outlet and Thermostat Housings | 902-313XD360 View | 902-313XD

902-313XD

Engine Coolant Water Outlet

Application Summary: Chrysler Pacifica 2008-07, Chrysler Town & Country 2010-07, Chrysler Voyager 2008-07, Dodge Caravan 2007, Dodge Grand Caravan 2010-07, Volkswagen Routan 2010-09

Where To Buy

Product Description

The original engine coolant water outlet on certain Chrysler, Dodge and Volkswagen vehicles is made from plastic that can become brittle over time, eventually leading to cracks in the plastic welds and fluid leaks that can damage the cooling system. This Dorman OE FIX coolant water outlet is manufactured from corrosion-resistant aluminum to help withstand underhood temperature extremes, resist leaks, reduce future maintenance costs and provide increased cooling system protection.

  • Upgraded repair - this engine coolant water outlet is manufactured from rugged aluminum to help withstand underhood temperatures better than the welded plastic original outlet
  • Direct replacement - designed for a seamless fit and a straightforward installation on specified Chrysler, Dodge and VW vehicles
  • Durable construction - designed and manufactured to strict specifications for reliable performance
  • Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience

Detailed Applications

Product Specifications

Air Vent (Bleeder Valve): No
Bleeder Screw Included: No
Bolt Hole Center To Bolt Hole Center: 66.1 mm
Bolt Hole Diameter: 6.7 mm
Bolt Hole Quantity: 2
Bolts Included: No
Bypass Holes: No
Bypass Inside Diameter: 0 mm
Bypass Length: 0 in
Bypass Outside Diameter: 0 mm
Bypass Quantity: 0
Color: Natural
Fitting Angle: 180 deg
Flange Length: 78 mm
Flange Thickness: 15.5 mm
Flange Width: 60 mm
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Rubber
Gasket Quantity: 1
Gasket Seat: Yes
Gasket Seat Depth: 3.35 mm
Gasket Type: Gasket O-Ring
Grade Type: Standard Replacement
Height: 92 mm
Housing Color: Gray
Housing Neck Angle (°): 90 deg
Inlet Hose Connection Type: Barbed
Inlet Port Diameter: 1.93 mm
Inlet Port Inside Diameter: 31.1 mm
Inlet Port Outside Diameter: 33.5 mm
Inlet Quantity: 1
Inlet Tube Length: 64.5 mm
Inside Diameter: 31.1 mm
Material: Metal
Mounting Hardware Included: No
Mounting Hole Diameter: 0.25 in
Mounting Hole Quantity: 2
O Rings Included: Yes
Outlet Hose Connection Type: Bolt On
Outlet Port Diameter: 49.2 mm
Outlet Port Inside Diameter: 49.2 mm
Outlet Port Outside Diameter: 0 mm
Outlet Quantity: 1
Outlet Tube Length: 0 mm
Outside Diameter: 60 mm
Package Contents: 1 Water Outlet; 1 Seal
Seal Quantity: 1
Sensor Port Count: 0
Sensor Port Size: 0 mm
Thermostat Included: No
Thermostat Opening Temperature: None
Threaded Plug Included: No

OE Numbers

DIRECT OE CROSS
4666054AA CHRYSLER
